Ultra-long Table Size Laser Cutting Machine
The cutting table width of this
CO2 flatbed laser cutting machine is 1.6m ( or 2.1m, 2.5m), and the table length is 6 meters, 9meters and even 11 meters and 13 meters long.
With the ultra-long table, you can cut extra-long patterns with one shot, no need to cut half of the patterns and then process the rest of the materials. Hence, there is no sewing gap on the cut piece that the laser cutter creates. The
Ultra-long Table Design processes the materials precisely and efficiently with little feeding time.
Technical Specifications
| Laser type |
CO2 glass laser tube / CO2 RF metal laser tube |
| Laser power |
150W / 300W |
| Working area (W×L) |
1600mm, 2100mm, 2500mm (W) × 6000mm, 9000mm, 11000mm, 13000mm (L) |
| Working table |
Vacuum conveyor working table |
| Mechanical System |
Servo motor; Gear and rack driven |
| Cutting speed |
0~500mm/s |
| Acceleration |
5000mm/s2 |
| Power supply |
AC220V±5% 50/60Hz |
| Graphic Format Supported |
AI, PLT, DXF, BMP, DST |
Machine Photos

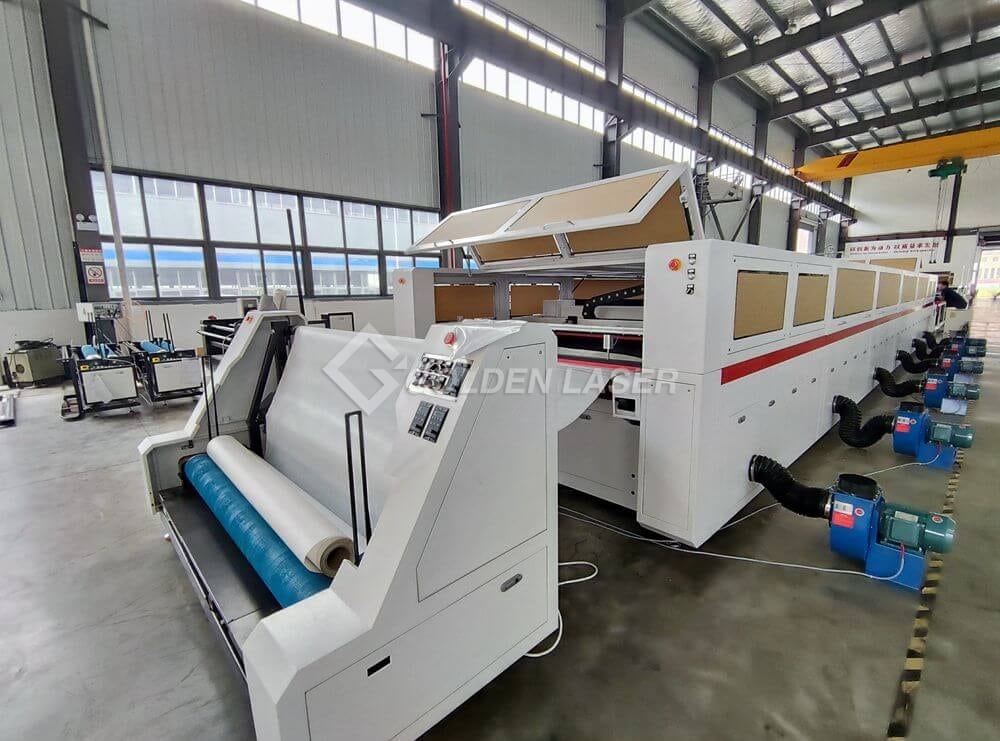

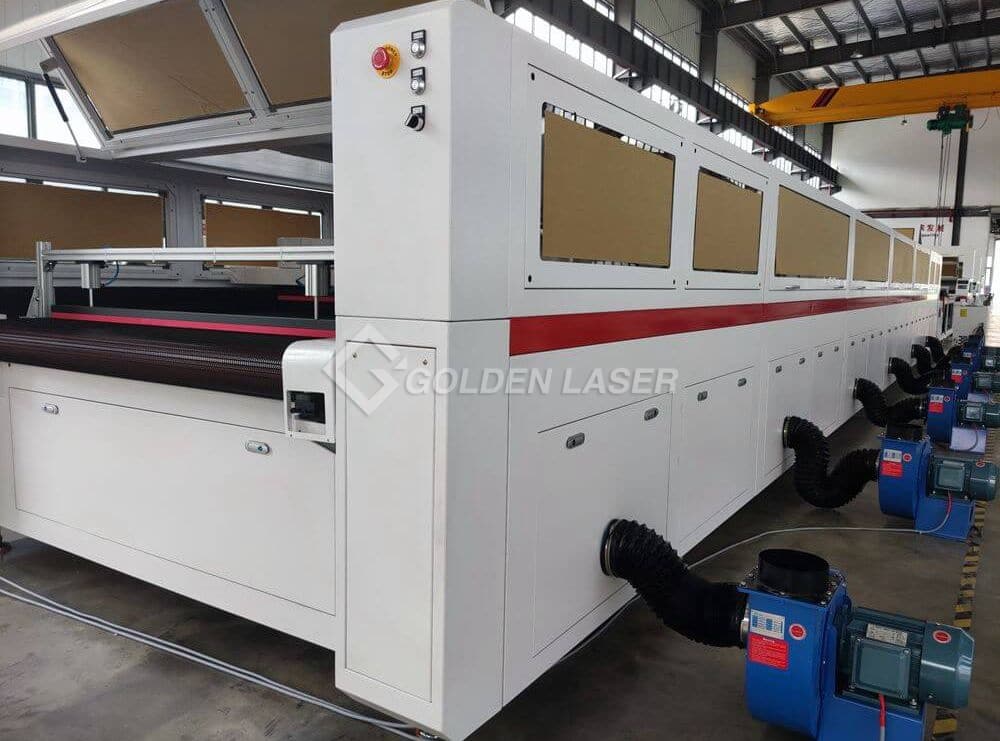

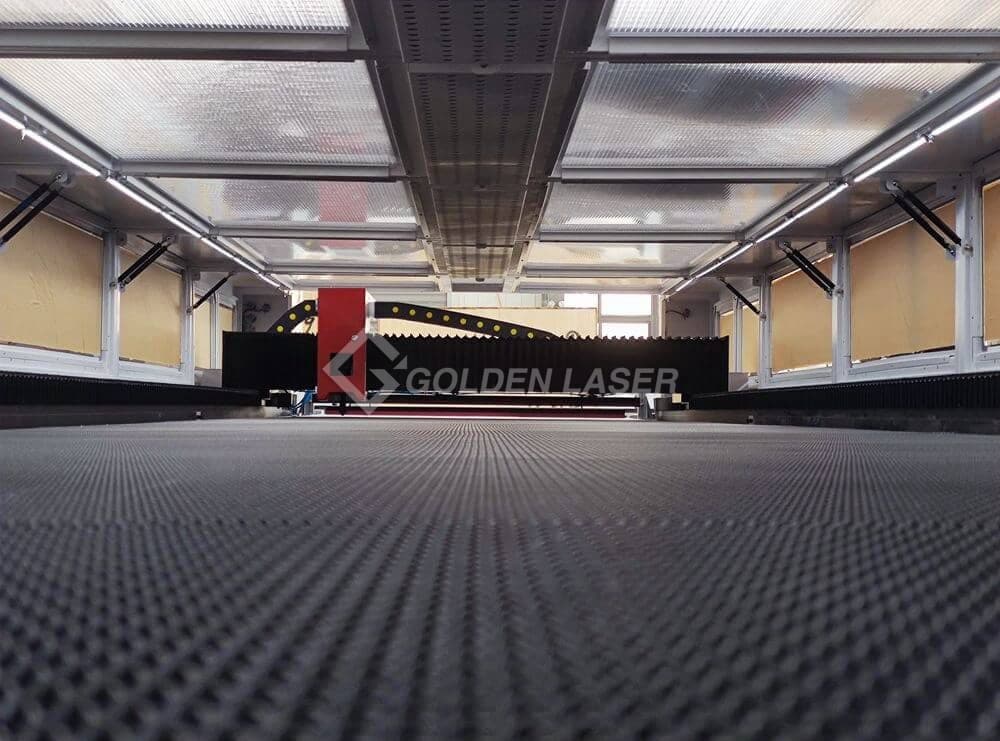

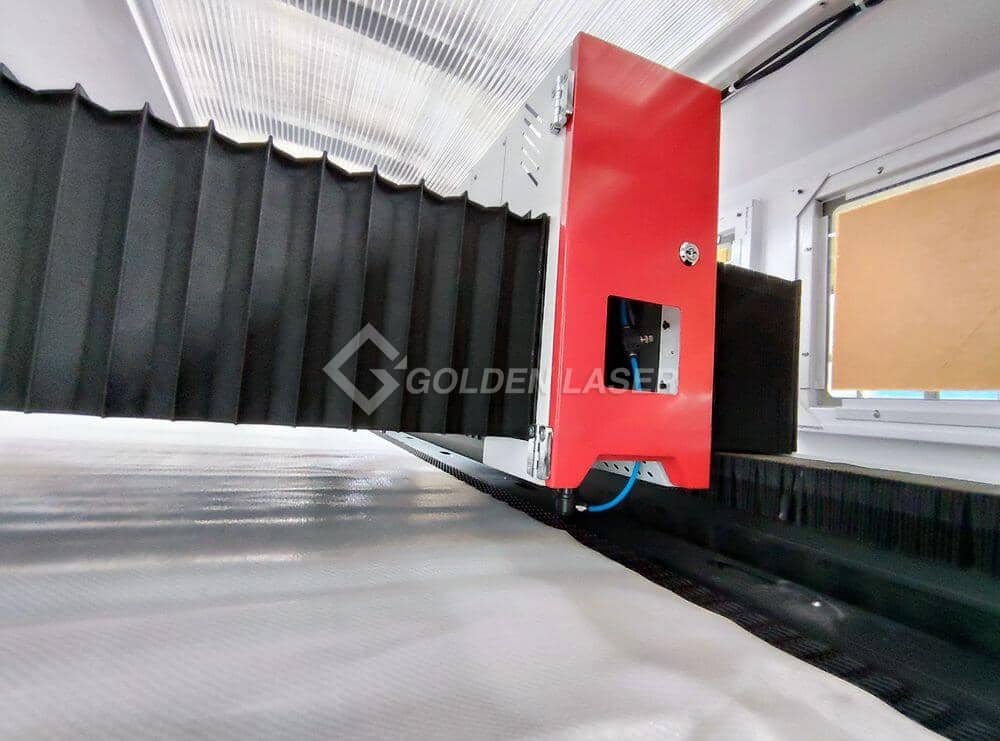

10 Meters Length CO2 Laser Cutting Machine Detailed Photos
Machine Features

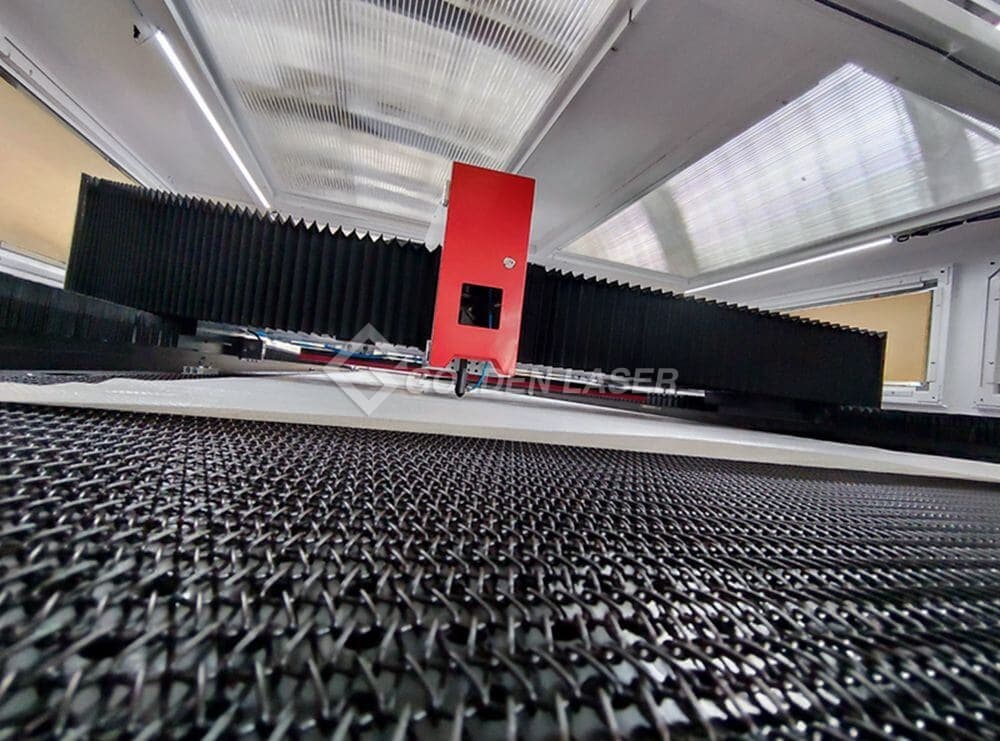

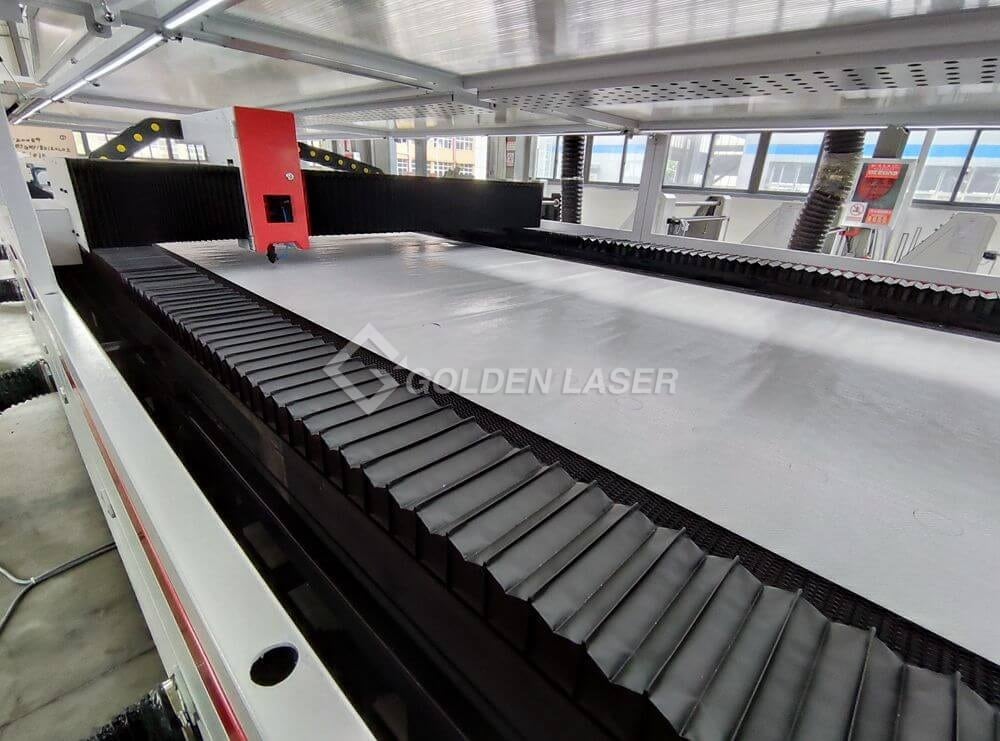

Conveyor working table
› Handling extra long material, and continuous processing material in roll.
› Ensuring the maximum flatness and the lowest reflectivity.
Auto Feeder
› Automatic feeding system, rectify deviations automatically.
Options
Customized optional extras simplify your production and increase your possibilities
Advantages of Cutting Textile with Laser Cutting Machine
Laser Cutting Samples
Aviation Carpets Cutting
Parachutes Cutting
Watch Ultra-long Table Size Laser Cutter in Action!
