Versatile Vision Laser Cutting System
QZDMJG-160100LD is a powerful camera laser machine for contour cutting.
With one 18-million Pixel DSLR Canon Camera equipped, the laser system can take photos of the digital printed or embroidered patterns, recognize the contour of patterns and then give cutting instruction for laser head to execute.
The two-laser-heads option makes this laser cutter machine implement high cutting efficiency as well.
• CANON 18-megapixel high-resolution SLR camera
• 24 million pixel camera for option
• The recognition format can reach 1500 × 900mm. Compared with CCD system, graphics do not need to be spliced, and the recognition accuracy is higher.
• The camera is installed on the top of laser machine. Compared with CCD camera, the recognition format is larger and the laser head processing efficiency is higher.
• It can directly catch outline of the pattern and edge-following cutting
• Compatible with the fifth generation CCD vision template cutting function
• The outlines of the object could display above its corresponding image after matching, convenient for judging the precision directly
• Continuously recognizing, feeding and cutting
• High working efficiency: All different patterns only one time catching.

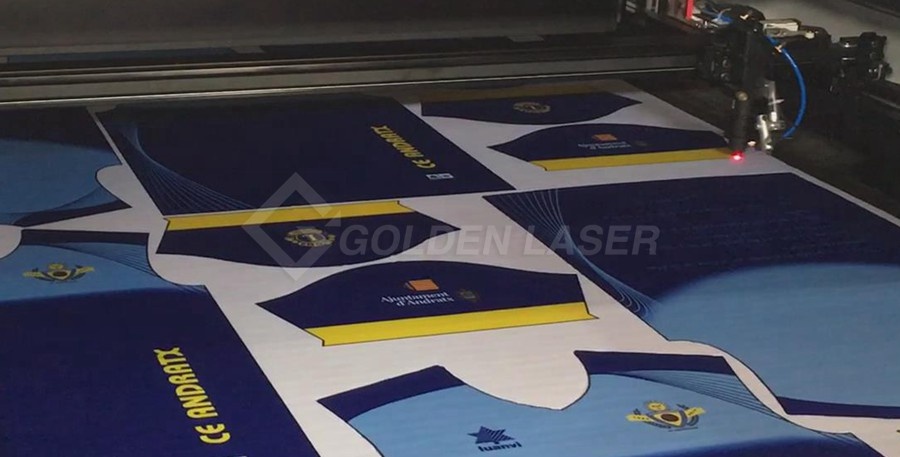

Dye-sublimated sportswear

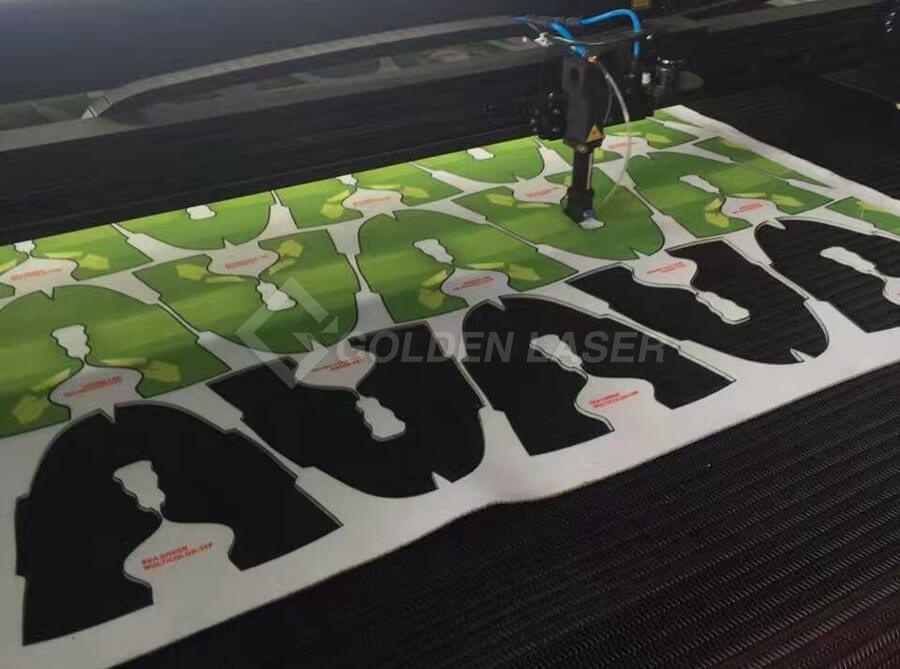

Warp fly knitting vamp

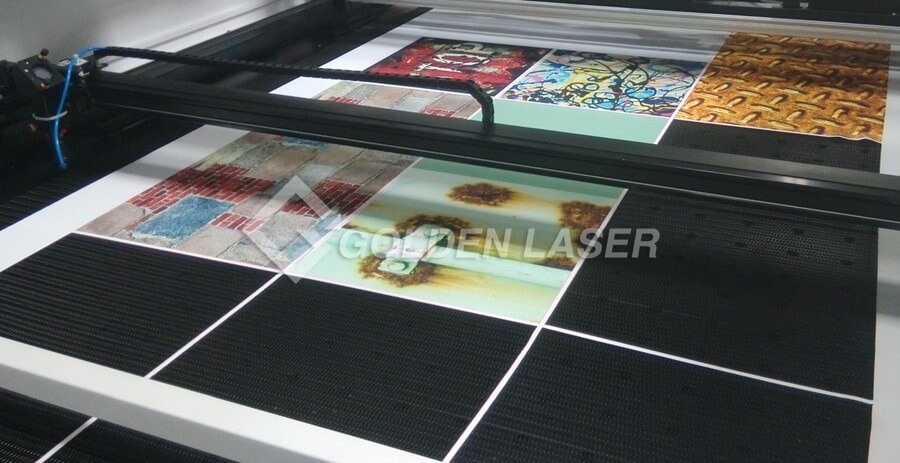

Digital printed graphic arts

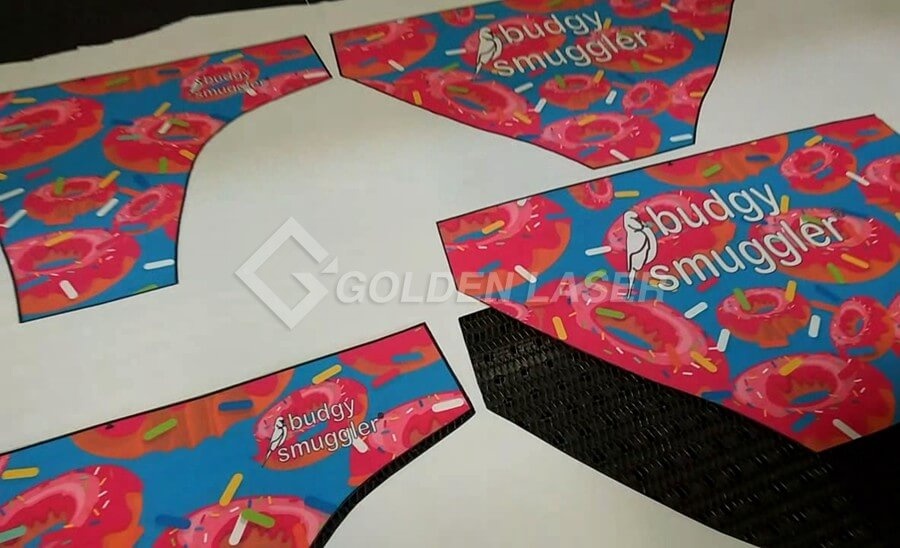

Swimwear

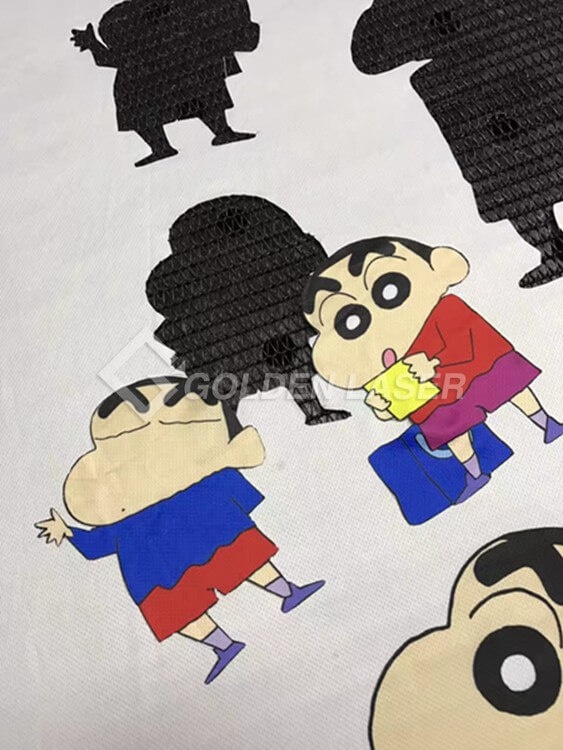

Printed cartoon images

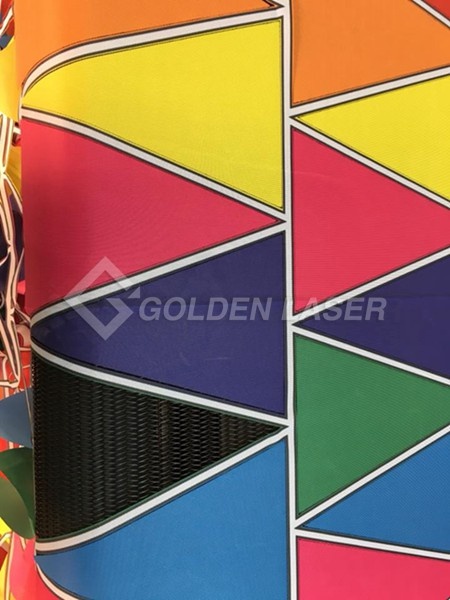

Flags
Big labels
